EXFO AXS-110 All-Fiber OTDR

Share

EXFO AXS-110 All-Fiber OTDR Intrroduction

EXFO AXS-110 OTDR is new generation production for fiber optic LAN/WAN Test, It is easy Location and Characterization of Events, EXFO AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between patch panels within a data center or in-building cabling, where events are usually closely spaced.
Multimode (MM) and Single mode (SM) Flexibility

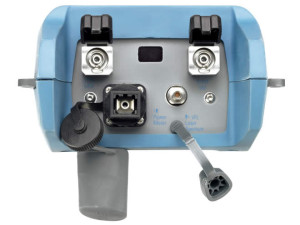

EXFO AXS-110 All-in one OTDR
EXFO AXS-110 All-in one OTDR

The AXS-110 combines single mode (SM) and multimode (MM) functionalities, ideal for premises, private and enterprise network testing. Test multimode fiber within premises, or single mode fiber between premises—all with a single OTDR unit—and maximize your return on investment.

The AXS-110 comes in two models:

EXFO AXS-110 All-Fiber OTDR
Combining single mode and multimode capabilities for enterprise, campus and access networks, this model offers the 850, 1300, 1310 and 1550nm wavelengths, with respective dynamic ranges of 24, 25, 32 and 30dB.

EXFO AXS-110 Multimode OTDR
Optimized for enterprise testing on both 50 and 62.5µm multimode fiber, this model offers the 850 and 1300 nm wavelengths, with respective dynamic ranges of 24 and 25dB.

EXFO AXS-110 Key Features

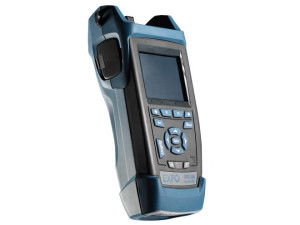

EXFO AXS-110 All-in one OTDR
EXFO AXS-110 All-in one OTDR
  • Event dead zone: 0.8 m
  • Wavelengths: 850/1300/1310/1550nm
  • Dynamic range: up to 32 dB
  • Battery autonomy: 8 hours
  • EF-Ready: compatible with SPSB-EF external launch conditioner to remove multimode uncertainty
  • FasTrace function: one-touch testing for top user-friendliness
  • USB port (memory-stick compatible) for easy data transfer
  • Large internal memory (up to 500 results)
  • Transflective color display for viewing clear results under bright sunlight
  • Superior automated analysis for a better, easier and faster diagnosis
  • Automatic pass/fail analysis and macro-bend locating

EXFO AXS-110 OTDR Applications

  • Data centers
  • Single mode and multimode fiber networks
  • LAN/WAN testing
  • Private network testing

TECHNICAL SPECIFICATIONS
Wavelengths (nm): 850/1300/1310/1550
Dynamic range(dB): 24/25/32/30
Pulse width (ns) Multimode: 5, 10, 30, 100, 275, 1000
Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000
Event dead zone (m): 0.8
Attenuation dead zon (m): 3.5/4.5/4/4.5
Linearity (dB/dB): ±0.03
Loss threshold (dB): 0.01
Loss resolution (dB): 0.01
Sampling resolution (m)  Multimode: 0.08 to 2.5; singlemode: 0.08 to 5.0
Sampling points Up to 64 000
Distance uncertainty (m): ±(0.75 + 0.0025 % x distance + sampling resolution)
Distance range (km) Multimode: 0.1 to 40; singlemode: 0.65 to 260
Typical real-time refresh (Hz): 4
Memory capacity: 500 traces
Measurement time : User-defined
Stable source output power e (dBm) Multimode: –3; singlemode: –2.5
Visual fault locator (optional) Laser, 650 nm ± 10 nm
CW typical Pout = 1.4 mW open beam

OPTIONAL POWER METER
Calibrated wavelengths (nm): 850, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510,  1530, 1550, 1570, 1590, 1610, 1625
Power range (dBm) : 26 to –64 (GeX 2 mm)
Uncertainty: ±5 % ± 0.4 nW (up to 5 dBm)
Display resolution (dB): 0.01 (–54 dBm to Pmax)
0.1 (–54 dBm to –64 dBm)
1 (–64 dBm to min)
Automatic offset nulling range g Maximum power to —38 dBm
Tone detection (Hz): 270/1000/2000

GENERAL SPECIFICATIONS
Size (H x W x D): 250 mm x 125 mm x 75 mm (9 7/8 in x 4 15/16 in x 3 in)
Weight: 1 kg (2.2 lb)
Temperature: operating –18 °C to 50 °C (14 °F to 122 °F)
storage –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity: 0 % to 95 % non-condensing
Power Li-ion batteries: 8 hours of continuous operation as per Bellcore TR-NWT-001138
